NEW QUESTION # 51
What is the result of the following Array subtraction?
- A. A 1-D Array of {-25, 25, 50}
- B. A 1-D Array of {75, -50, 25}
- C. A 2-D Array of {{-25, -50, -50}, {50, 25, 25}}
- D. A 1-D Array of {-25, 25}
Answer: D
NEW QUESTION # 52
What mechanical action of a Boolean would you use to mimic a button on a Windows dialog?
- A. Switch When Released
- B. Switch Until Released
- C. Latch When Released
- D. Latch UntilReleased
Answer: C
NEW QUESTION # 53

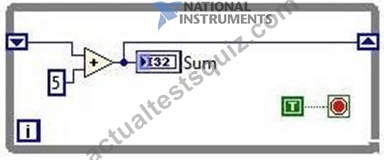

The SubVI is opened and then run three times.
What is the value of Sum when the VI completes execution?
- A. 0
- B. 1
- C. Indeterminate
- D. 2
Answer: D
NEW QUESTION # 54
Which timing function (VI) is the best choice for timing control logic in applications that run for extended periods of time?
- A. Option B
- B. Option A
- C. Option D
- D. Option C
Answer: D
NEW QUESTION # 55

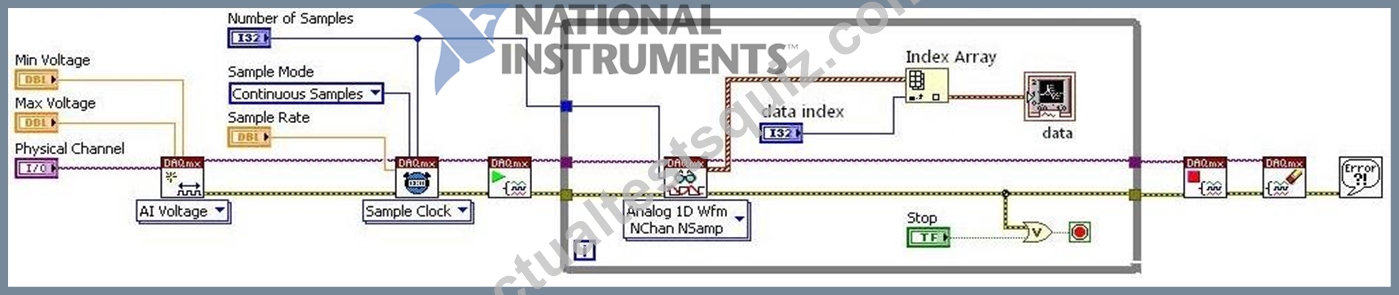

All eight inputs on cDAQ1Mod2 are reading data from thermocouples.
What settings for Physical Channel and data index would allow data indicator to display the data from the fourth thermocouple?
- A.
- B.
- C.
- D.
Answer: B
NEW QUESTION # 56
What is the output of the Build Array function in the following block diagram when Concatenate Inputs is selected?
- A. c.2-D Array of {{1, -4, 3, 0}, {7, -2, 6}}
- B. d.2-D Array of {{1, -4, 3}, {7, -2, 6}}
- C. b.1-D Array of {1, 7, -4, -2, 3, 6}
- D. 1-D Array of {1, -4, 3, 7, -2, 6}
Answer: D
NEW QUESTION # 57
Which chart update mode should be used to show running data continuously scrolling form left to right across the chart?
- A. Step Chart
- B. Scope Chart
- C. Strip Chart
- D. Sweep Chart
Answer: C
NEW QUESTION # 58

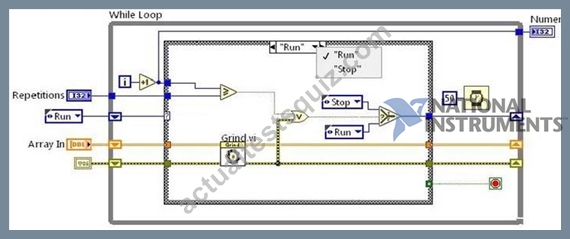

This VI is started with a value of 7 in the Repetitions control.
The SubVI Grind.vi returns an error the fifth time it runs.
What is the value in the Numeric indicator after this VI has run?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: A
NEW QUESTION # 59

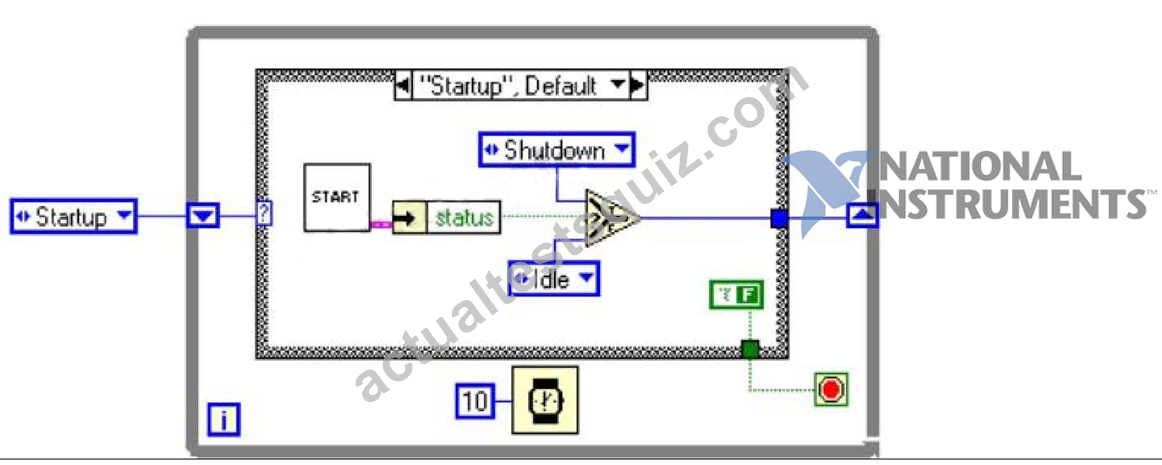

The following figure is an example of which common type of VI architecture?
- A. General VI
- B. State Machine VI
- C. Parallel Loop VI
- D. Multiple Case Structure VI
Answer: B
NEW QUESTION # 60
Which Property Node changes the text color attributes of any digital numeric control from a subVI
- A.
- B.
- C.
- D.
Answer: A
NEW QUESTION # 61
Which of the following apply to Property Nodes? (Choose all apply)
- A. Property Nodes allow attributes of front panel objects to be programmaticallymanipulated.
- B. More than one Property Node can be used for a single front panel object.
- C. Property Nodes contained in aSubVI will always cause the front panel to beloaded in memory.
- D. Property Nodes can be used to update the values contained in a front panelobject.
Answer: A,B,C,D
NEW QUESTION # 62
A VI has Automatic Error Handling enabled. It calls a subVI that has Automatic Error Handling disabled. The Error Out terminal of the subVI is unwired in the calling VI. The subVI returns an error to the calling VI. Will an error dialog be posed because of Automatic Error Handling?
- A. Yes, since the Error Out terminal from the subVI is not wired to the calling VI.
- B. No, since the subVI has Automatic Error Handling disabled.
- C. No, since the Error Out terminal from the subVI is not wired to the calling VI.
- D. Yes, since the subVI has Automatic Error Handling disabled.
Answer: A
NEW QUESTION # 63
Can a wire be used to pass data between loops that are intended to run in parallel?
- A. No
- B. Yes
Answer: A
NEW QUESTION # 64

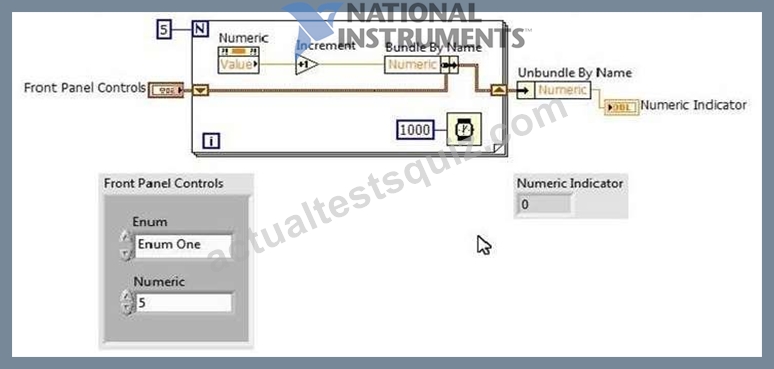

The VI begins execution with the value of Numeric as 5, at the end of the 4th loop iteration (i=3), the user changes the front panel control Numeric to value 2.
What value will be displayed in the front panel Numeric indicator after the VI completes execution?
- A. 0
- B. 1
- C. 2
- D. 3
Answer: C
NEW QUESTION # 65
Formula nodes accept which of the following operations?
- A. The use of nested Formula Node structures
- B. Embedding of SubVIs within the Formula Node
- C. Pre and post increment (++) and decrement (--) as in the C language
- D. Basic programming language instructions Input and Print
Answer: C
NEW QUESTION # 66
If an input name on the Show Context Help window is in bold for a SubVI, which of the following conditions are true? (Choose all apply)
- A. A broken run arrow will result unless the input is wired.
- B. An input is recommended, but not required.
- C. An input is required.
- D. Input values must be scalar.
Answer: A,C
NEW QUESTION # 67
Which combination of words correctly completes the following statement?
Unlike__________, which display only the most recent array of values written to them, ___________ update periodically and maintain a history of the past data.
- A. plots; graphs
- B. graphs; charts
- C. charts; plots
- D. charts; graphs
Answer: B
NEW QUESTION # 68

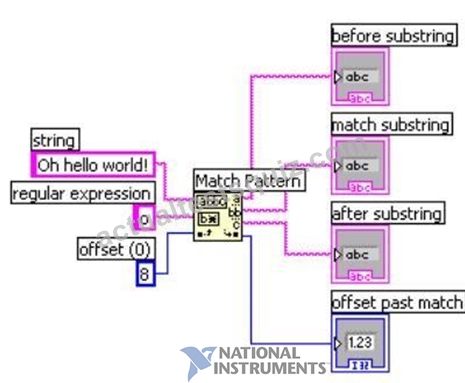

What is the value in after substring upon completion of the following code?
- A. world!
- B. rld!
- C. h hello world!
- D. <blank>
Answer: B
NEW QUESTION # 69
Which of the following methods is NOT a method to create a 1-D Array?
- A. Use a For Loop with auto-indexing enabled.
- B. Place an Array Shell on the Front Panel and drag a Control into the shell.
- C. Use a While Loop with auto-indexing disabled.
- D. Use the Initialize Array function.
Answer: C
NEW QUESTION # 70

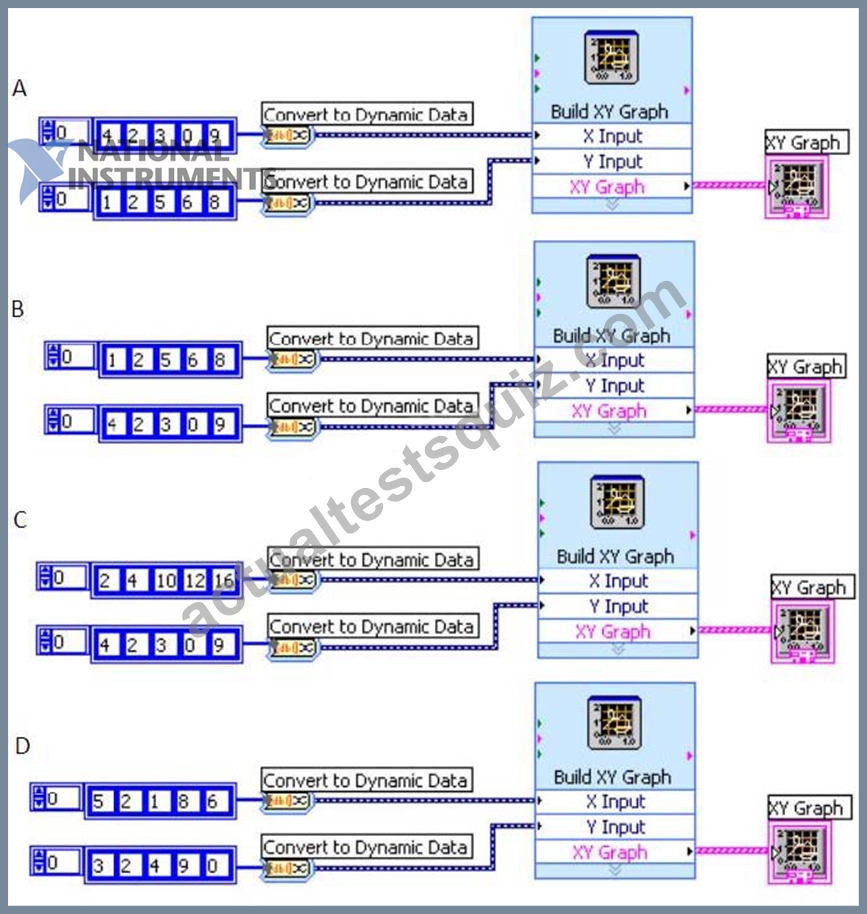

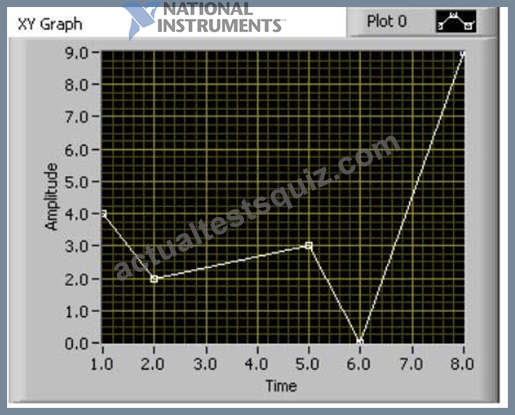

Which of the following produces this XY Graph?
- A. Option A
- B. Option D
- C. Option C
- D. Option B
Answer: D
